Specification 主要技术参数

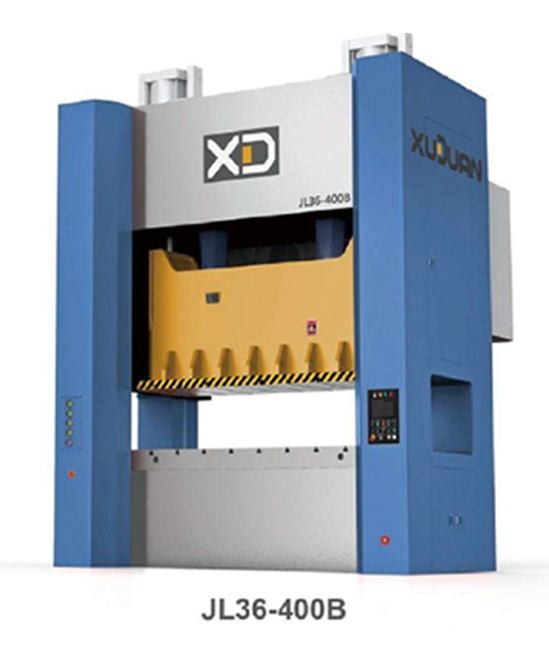

The press of this series adopts whole frame structure with rigid steel, high precision and wide operation space, which is widely used in precision work and automatic production.
- Welded frame with quality steel of good rigidity; H-frame semi closed structure of little deformation and good rigidity.
- Double crankshafts converse rotation will eliminate side force.
- Square figure with eight friction faces assures precision and stability.
- Combined type pneumatic friction clutch and brake with automatic lubrication.
- Hydraulic overload protector and PLC controller.
- Speed die changer, air cushion, photo guard, auto feeder are optional.
| 项目名称 Item | 单位 Unit | JL36-200B | JL36-250B | JL36-315B | JL36-400B | JL36-500B | JL36-630B |
|---|---|---|---|---|---|---|---|
| 公称力 Nominal Pressure | kN | 2000 | 2500 | 3150 | 4000 | 5000 | 6300 |
| 公称力行程 Nominal Pressure Stroke | mm | 6 | 7 | 8 | 8 | 10 | 10 |
| 滑块行程 Slide Stroke Length | mm | 230 | 250 | 250 | 280 | 280 | 300 |
| 行程次数 No. of Strokes Per Minute | SPM | 32 | 32 | 28 | 27 | 30 | 18 |
| 最大装模高度 Max. Die Height | mm | 500 | 560 | 560 | 560 | 590 | 700 |
| 装模高度调节量 Die Height Adjustment | mm | 120 | 120 | 120 | 120 | 120 | 130 |
| 工作台尺寸 (前后×左右) Bolster Surface Size (FB×LR) | mm | 840×2200 | 1000×2500 | 1000×2500 | 1100×2800 | 1200×2850 | 1300×3000 |
| 滑块底面尺寸 (前后×左右) Slider Bottom Surface Size (FB×LR) | mm | 750×1950 | 950×2300 | 1000×2300 | 1000×2500 | 1100×2450 | 1100×2600 |
| 侧面开口尺寸 (前后×上下) Side Opening (FB×H) | mm | 740×600 | 900×580 | 900×600 | 1000×630 | 1000×730 | 1000×900 |
| 主电机功率 Main Motor Power | kW | 22 | 37 | 37 | 45 | 55 | 75 |
| 外形尺寸 Overall Dimension 前后 F.B. | mm | 2400 | 2905 | 2950 | 3380 | 3600 | 3880 |
| 左右 L.R. | mm | 3070 | 3390 | 3430 | 3760 | 3880 | 4910 |
| 高度 Height | mm | 4200 | 5095 | 4805 | 5320 | 5189 | 5635 |
