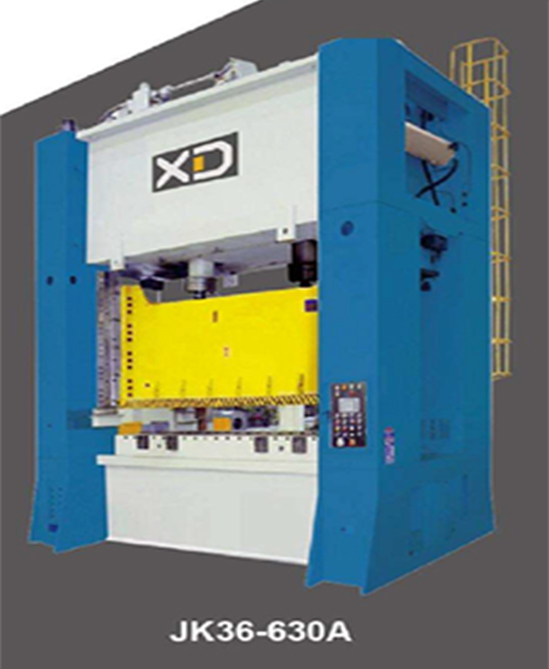

JK36-630A

รหัสสินค้า

JK36-630A

หมวดหมู่ : งานขาย Machine "XUDUAN"
คำค้นหา
จำนวนผู้เข้าชมสินค้า 62 คน

Specification 主要技术参数

Welded pre-stress combined-type structure make sure the machine body high rigid, and stress eliminating heat ageing process ensure the machine body deformation.

  • H type double points structure with the ability of resisting edge load suitable for large progressive dies punching.
  • Low inertial clutch brake, ensure steady transmission, low noise, and long serve life.
  • Slider with lengthened eight-surface guide rails and good wear resistance make sure of high-precision retaining.
  • The machine equipped with electric die height adjusting device, the die height adjusted by motor, and the counter indicates numerical variable.
  • Slider balance device effectively to balance slider operation and die height.
  • Intermittent automatic thin oil lubrication system, make sure of good lubrication for the completed machine.
  • The machine adopts Rotary transformer, Mitsubishi PLC and Touching Screen Control, also with outputting feeding signal and testing interface.
  • Frequency conversion stepless speed adjustment.
  • Equipped with cumulative counter and work shifts counter.
项目名称 Item 单位 Unit JK36-300A JK36-400A JK36-630A JK36-800A
公称力 Nominal Pressure kN 3000 4000 6300 8000
公称力行程 Nominal Pressure Stroke mm 2 3 3 3
滑块行程 Slide Stroke Length mm 30 50 50 50
滑块行程次数 No. of Strokes Per Minute SPM 70–180 70–150 70–120 40–80
最大装模高度 Max. Die Height mm 540 540 640 650
装模高度调节量 Die Height Adjustment mm 80 100 100 100
工作台尺寸 (前后×左右) Bolster Surface Size (FB×LR) mm 1000×2600 1100×2800 1300×3000 1800×4000
滑块底面尺寸 (前后×左右) Slider Bottom Surface Size (FB×LR) mm 1000×2600 1000×2800 1100×3000 1800×4000
侧面开口尺寸 (前后×上下) Side Opening (FB×H) mm 800×580 800×650 900×650 1250×775
主电机功率 Main Motor Power kW 55 75 110 132
外形尺寸 Overall Dimension
前后 F.B.		 mm 2700 3200 3000 4350
左右 L.R. mm 4050 5360 4850 6850
高度 Height mm 6000 6100 6700 6820
重量 (约) Gross Weight kg 56410 80000 110000 180000
