Specification 主要技术参数

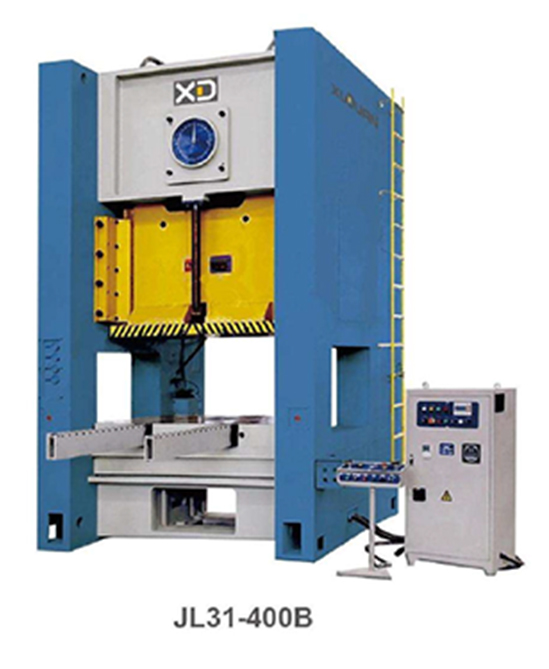

The press of this series adopts whole frame structure with rigid steel, high precision and wide operation space, which is widely used in precision work and automatic production.
- Welded frame with quality steel of good rigidity; H-frame semi closed structure of little deformation and good rigidity.
- Square figure with eight friction faces assures precision and stability.
- Combined type pneumatic friction clutch and brake with self-propelled lubrication.
- Hydraulic overload protector and PLC controller.
- Speed die changer, automatic die height adjustment system, air cushion, photo guard, and auto feeder are optional.
| 项目名称 Item | 单位 Unit | JL31-200 | JL31-250B | JL31-315B | JL31-400B | JL31-500B | JL31-630B |
|---|---|---|---|---|---|---|---|
| 公称力 Nominal Pressure | kN | 2000 | 2500 | 3150 | 4000 | 5000 | 6300 |
| 公称力行程 Nominal Pressure Stroke | mm | 7 | 8 | 9 | 8 | 10 | 13 |
| 滑块行程 Slide Stroke Length | mm | 180 | 220 | 250 | 200 | 250 | 250 |
| 滑块行程次数 No. of Strokes Per Minute | SPM | 40 | 30 | 30 | 31 | 25 | 22 |
| 最大装模高度 Max. Die Height | mm | 490 | 560 | 560 | 580 | 560 | 560 |
| 装模高度调节量 Die Height Adjustment | mm | 110 | 110 | 120 | 120 | 120 | 120 |
| 工作台尺寸 (前后×左右) Bolster Surface Size (FB×LR) | mm | 800×1200 | 900×1300 | 950×1400 | 1000×1400 | 1000×1500 | 1200×1700 |
| 滑块底面尺寸 (前后×左右) Slider Bottom Surface Size (FB×LR) | mm | 650×1100 | 800×1200 | 800×1300 | 800×1300 | 800×1400 | 900×1500 |
| 侧面开口尺寸 (前后×上下) Side Opening (FB×H) | mm | 830×750 | 940×730 | 960×790 | 980×750 | 1000×730 | 1200×850 |
| 主电机功率 Main Motor Power | kW | 22 | 22 | 30 | 37 | 55 | 75 |
| 外形尺寸 Overall Dimension 前后 F.B. | mm | 2750 | 3000 | 3500 | 3500 | 3600 | 4170 |
| 左右 L.R. | mm | 2080 | 2460 | 2210 | 2210 | 2210 | 3200 |
| 高度 Height | mm | 3750 | 4145 | 4330 | 4600 | 4755 | 5670 |
| 重量 (约) Gross Weight | kg | 23800 | 30050 | 38500 | 41000 | 43955 | 75820 |
