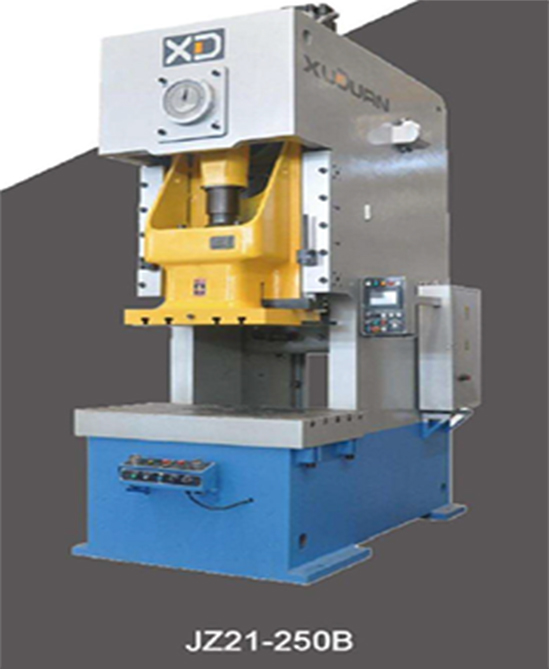

Specification 主要技术参数
Purpose and Structure Performance
Universal high performance press are widely used in the fields of aeronautics, auto, agriculture machines, electric machines, apparatuses and meters, medical equipments, electrical home appliance and hardware.
- Welded frame with quality steel which means good rigidity.
- Square figure long guide with six friction faces makes abrasion resistant and punching precision.
- Rigid overload protector can protect the die when overloading.
- Combined pneumatic clutch and brake is made of friction material, which means long service life.
- Closed gear-driven, dipped in lube, which drives stably with low noise.
- Slide with counter balancer, which will eliminate the clearance and improve the stability and precision.
- Intermittent auto lubrication makes every point get fine and safe lubrication to ensure long service life.
- PLC electric control system is safe and reliable.
- Air cushion, photo guard, auto feeder, speed die changing and variable-speed device are optional.
| 项目名称 Item | 单位 Unit | J21-25B | J21-40B | J21-63B | J21-80B | J21-100B | J21-125B | J21-160B | J21-200B | J21-250B | J21-315B | J21-400B |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 公称力 Nominal Pressure | kN | 250 | 400 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 |
| 公称力行程 Nominal Pressure Stroke | mm | 3 | 4 | 4.5 | 5 | 5 | 5 | 6 | 6 | 8 | 8 | 8 |
| 滑块行程 Slide Stroke | mm | 80 | 100 | 120 | 130 | 140 | 150 | 160 | 200 | 250 | 250 | 250 |
| 行程次数 No. of Strokes Per Minute | SPM | 90–110 | 55–90 | 45–75 | 40–70 | 35–60 | 30–55 | 30–50 | 25–40 | 20–35 | 20–30 | 18–28 |
| 最大装模高度 Max. Die Height | mm | 250 | 270 | 300 | 330 | 380 | 400 | 450 | 500 | 500 | 500 | 550 |
| 装模高度调节量 Die Height Adjustment | mm | 40 | 50 | 60 | 80 | 110 | 110 | 110 | 110 | 120 | 120 | 120 |
| 喉口深度 Throat Depth | mm | 180 | 230 | 300 | 330 | 400 | 440 | 500 | 600 | 700 | 800 | 900 |
| 工作台尺寸 Bolster Surface (FB×LR) | mm | 470×810 | 560×850 | 710×1000 | 810×1100 | 910×1200 | 1100×1300 | 1300×1400 | 1500×1500 | 1500×1600 | 1600×1800 | 1600×2000 |
| 滑块底面尺寸 Slider Surface (FB×LR) | mm | 310×450 | 410×540 | 510×630 | 520×630 | 630×830 | 750×950 | 850×1050 | 950×1150 | 950×1250 | 950×1350 | 950×1350 |
| 立柱间距离 Distance between Uprights | mm | 435 | 530 | 650 | 680 | 830 | 880 | 970 | 1020 | 1220 | 1380 | 1480 |
| 工作台面离地高度 Height of Bolster Surface | mm | 750 | 750 | 900 | 900 | 900 | 900 | 900 | 900 | 1000 | 1000 | 1000 |
| 可选配气垫 Air Cushion Pressure | kN | – | 45 | 50 | 60 | 100 | 145 | 145 | 145 | 145 | 145 | 145 |
| 主电机功率 Main Motor Power | kW | 3 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 |
| 外形尺寸 Overall Dimension 前后 F.B. | mm | 1395 | 1530 | 1835 | 1931 | 2135 | 2170 | 2700 | 2700 | 2850 | 2900 | 3200 |
| 左右 L.R. | mm | 1210 | 1600 | 1870 | 2085 | 2330 | 2450 | 2650 | 2920 | 3430 | 3835 | 4500 |
| 高度 Height | mm | 2105 | 2280 | 2830 | 3010 | 3210 | 3330 | 3700 | 4100 | 4550 | 5000 | 5500 |
| 重量 (约) Gross Weight | kg | 2200 | 4200 | 5700 | 6900 | 10950 | 13200 | 16600 | 21510 | 28000 | 34000 | 41600 |
