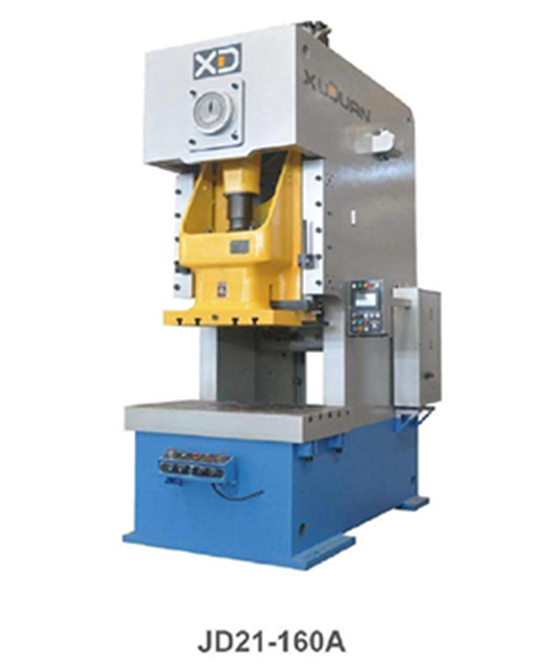

JD21-160A

รหัสสินค้า

JD21-160A

หมวดหมู่ : งานขาย Machine "XUDUAN"

คำค้นหา

จำนวนผู้เข้าชมสินค้า 64 คน

JD Series Press

JD series press with triple geared driven system, the stroke is longer than normal presses, which is suitable for punching thick plate.

Welded frame with quality steel-good rigidity.
Square figure and long guide with six friction faces makes sure of abrasion resistant and punching precision.
With quick response and reliable motion, hydraulic overloading protector will protect the die and press when overloading, and make the press recover in short time.
Combined friction clutch and brake closed gear-driven with dipped lube. With counter balancer, the slide runs stably with low noise.
Intermittent auto lubrication makes every point be fully lubricated, which assures long service life.
PLC electric control system has sensitive motion and reliable performance.
Speed die changer, automatic die height adjustment system, air cushion, photo guard, auto-feeder and variable speed device can be fixed on the press.

Item	Unit	JD21-125A	JD21-160A	JD21-200A	JD21-250A	JD21-315A	JD21-400A
Nominal Pressure	kN	1250	1600	2000	2500	3150	4000
Nominal Pressure Stroke	mm	8	9	12	12	12	14
Slide Stroke Length	mm	150	160	160	200	250	250
No. of Strokes Per Minute	SPM	35	35	35	30	25	25
Max. Die Height	mm	400	400	450	500	550	550
Die Height Adjustment	mm	90	110	110	110	120	120
Throat Depth	mm	330	380	400	430	430	510
Bolster Surface Size (FB × LR)	mm	700×1200	740×1300	780×1400	840×1400	840×1500	1000×1800
Slider Bottom Surface Size (FB × LR)	mm	520×630	580×800	580×800	650×880	700×950	700×950
Main Motor Power	kW	15	15	18.5	22	30	37
Front-Back	mm	2186	2622	2775	2860	2802	3220
Left-Right	mm	1420	1522.5	1550	1630	1563	1800
Height	mm	3385	3470	3770	4290	4452	4600
Gross Weight	kg	12500	15387	18300	25600	28639	35000
